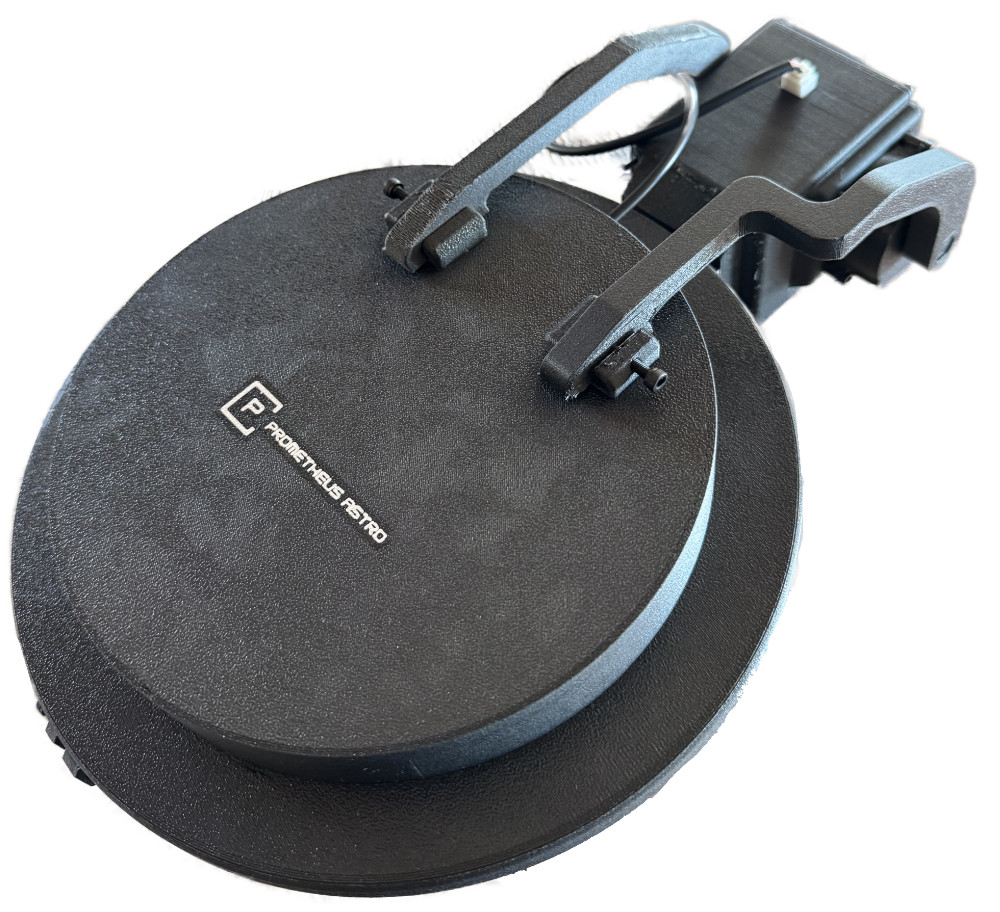

Prometheus Astro Flat Panel Cover Calibrator for Astrophotography — Forged in Myth. Built for the Stars.
Astrophotography requires precision at every step. The Flat Panel Cover Calibrator for astrophotography brings together two critical functions in a single device: a motorized dust cover and a flat-field calibration panel. Designed for refractors from 50mm to 150mm aperture, it ensures your imaging train stays protected while delivering professional-grade calibration frames with ease.
At the heart of the Flat Panel Calibrator is a uniform LED panel, providing 1024 finely tuned brightness levels through PWM control. Whether you need perfectly balanced flats or consistent dark coverage, the FPC gives you the reliability your imaging workflow demands.
The cover mechanism is driven by a planetary gear stepper motor, engineered for smooth and precise operation, ensuring a complete light seal for true dark frames. Power is provided via 12V input jack and is simple and universal,
With ASCOM compatibility (and INDI drivers in development), the FPC Calibrator integrates seamlessly into modern astrophotography setups. It’s more than just a tool — it’s an all-in-one solution that saves time, protects your optics, and elevates your imaging results.
- ✅ All-in-one solution – motorized dust cover + flat panel calibrator in a single device
- Compatible with refractors from 50mm to 150mm aperture
- Uniform LED illumination with 1024 brightness levels for precise flats
- ⚡ PWM-controlled dimming for smooth, accurate light adjustment
- Planetary gear stepper motor provides secure and reliable dark coverage
- 12-V powered (12V, 500mA)
- ️ ASCOM compatible (INDI driver support coming soon)
- Standalone operation – You can use the flat panel with all its features without the need of a mini-pc. Just connect your mobile phone on laptop on the Flat Panel hotspot and access the Control Interface. Ideal for use with DSLRs and star trackers. You can also use it if you have an ASIair!
- Protects your optics while streamlining calibration workflows
- Adjustable open and close positions
Note: When placing an order, include your telescope make and model in the Order notes field in order for us to provide you with the right diameter mounting rings. If no make and model is provided, we will attempt to contact you and if there is no response, we will be cancelling / refunding your order.
